Crane Rail — Light Crane Systems

Our Light Crane System provides a versatile solution for material handling

The light crane system presented by Carlstahl Craftsman provides a versatile solution for material handling, promoting an ergonomic and efficient workflow. Specifically designed for tasks demanding precision and conducted in confined spaces where a stable lifting capacity is imperative, our light crane systems stand as the optimal choice. We offer a diverse range of XY Cranes, all adhering to high-quality standards and conforming to a wide spectrum of types and capacities in alignment with IS/ISO standards.

Light crane system offers many possibilities for Ergonomic handling loads quickly, Exact positioning, safely and efficiently above the working and production level.
High flexibility of the system enables installations to be integrated easily

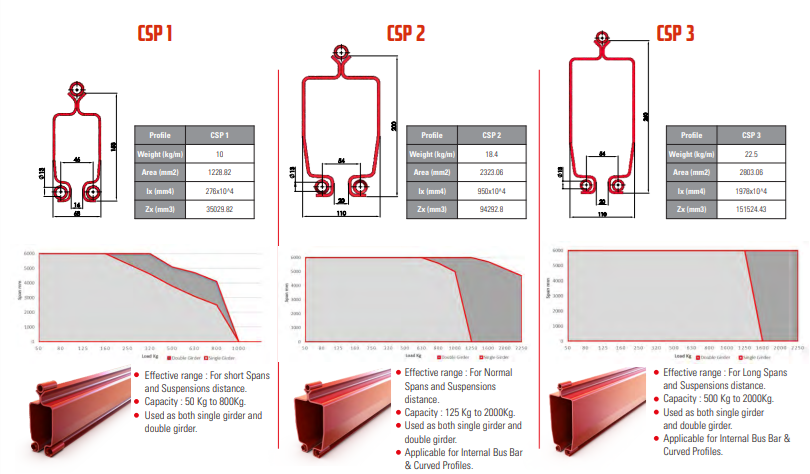

Specifications

CSP 1

Profile
CSP 1
Weight (kg/m)
10
Area (mm2)
1228.82
lx (mm4)
276×10^4
Zx (mm3) 35029.82

CSP 2

Profile
CSP 2
Weight (kg/m)
18.4
Area (mm2)
2323.06
lx (mm4)
950×10^4
Zx (mm3) 94292.8

CSP 3

Profile
CSP 3
Weight (kg/m)
22.5
Area (mm2)
2803.06
lx (mm4)
1978×10^4
Zx (mm3) 151524.43

Description

CSP 1

  • Effective range: For short spans and suspensions distance
  • Capacity: 50 kg to 800 kg
  • Used as both single girder and double girder

CSP 2

  • Effective range: For Normal Spans and Suspensions distance
  • Capacity: 125 kg to 2000 kg
  • Used as both single girder and double girder
  • Internal Bus Bar can be provided

CSP 3

  • Effective range: For Normal Spans and Suspensions distance
  • Capacity: 120 kg to 2000 kg
  • Used as both single girder and double girder
  • Internal Bus Bar can be provided

CSP2 – BUSBAR

  • Profile CSP2 is incorporated with Internal Busbar
  • Effective range: For Normal Span and Suspension distances
  • Capacity: 125 kg to 1500 kg
  • Used as both single girder and double girder

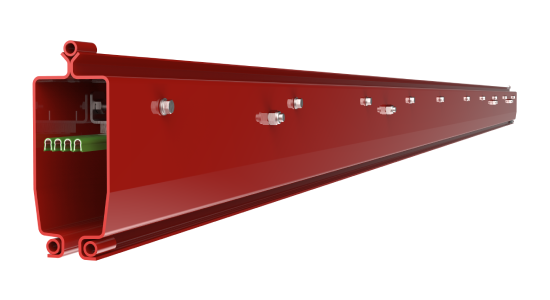

CSP3 – BUSBAR

  • Profile CSP3 is incorporated with Internal Busbar
  • Effective range: For Long Span and Suspension distances
  • Capacity: 500 kg to 2000 kg
  • Used as both single girder and double girder
