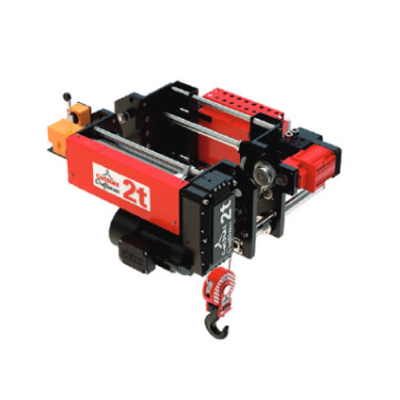

Single Girder Monorail Hoist
Single Girder Monorail Hoist
General Purpose Micro AC Drive
0.18 to 4 kW (0.25 to 5 hp)
1Φ 100 & 200 V, 3Φ 200 & 400
CLH Series Models
| Model NO | Working Load (Tons) | Lift Height (m) | Reeving | Speed (m/mm) | FEM |
| CLH 0.5 | 0.5T | 6, 9, 12, 18, 24 | 2/1 | 2.5~10 | 2M |
| CLH 01 | 1T | 1.25~5 | |||
| CLH 02 | 2T | ||||
| CLH 03 | 3T | 6, 9, 12 | 4/1 | ||
| CLH 05 | 5T | 1~4 | |||
| CLH 7.5 | 7.5T | 1.2~4.7 | |||
| CLH 10 | 10T | ||||
| CLH 10 | 15T | 6/1 | 0.8~3 |
Single Girder Monorail Hoist Types
Low Headroom Hoist (Model: CLH-R)
Technical Advantages
- Compact modular design provides maximum hook approach.
- Designed according to FEM / DIN / ISO standards.
- Counter weights are eliminated for better operational efficiency.
- Duty Class ISO M5 / FEM 2m as standard supply in all variants.
- Flange width: Smoothly adjustable with threaded screws and fasteners.
- Frequency inverters as standard in lifting and cross travel movements.
- Increased life of mechanical components.
- Speed control by inverter, selectable speeds.
- Precise handling and smoothness in movement.
Features
- Modular in construction with flexibility on falls interchange (4/1,2/1).
- Light weight and comparably less headroom.
- Forged hooks according to DIN standards.
- Flanged wheels to guide the runway beam.
- Travel machinery directly drives the wheels.
- Acceleration and deceleration by inverters to increase the life span of the components.
Safety
- Rope safety factor >= 5
- Motor over heating protection with thermistor.
- Double limit switch for up and down travel movement.
- Precise and accurate closed loop overload protection system (via.) VFD.
- Reliable load clamping by safety latch.
Technology
- Gear Box
- Rope Drum
- Rope Guide
- Rope
- Hook Block
- Rotary Limit Switch Equipment
- End Tie Assembly
- Variable Frequency Drive
- Cross Travel Machinery
- Hoisting & Travel Motor
- Wheel
Specifications
Standard Specifications
| Capacity Range | 500 Kg to 10000 Kg |
| Classification | FEM 2m, 3m, 4m |
| Lifting Speed(m/min) | 1~10 M/Min (Frequency Controlled) |
| Travel Speed(m/min) | 5~20; Freqency Controlled 25/6; Contactor Controlled |
| Power Supply | 415Volts, 3 Phase, 50 Hz, AC Supply |
| Control Supply | 24 Volts, 50 Hz, DC Supply Frequency Controlled 48 Volts, 50 Hz, AC Supply Contactor Controlled |
| Ambient Temp. (°C) | 50°C Max |
| Application | Indoor |
| Thermal Insulation Class | F-Class |
| Motor Enclosure | IP 54 |
| Brake Type | Electromagnetic Disc Brake – AC/DC |
| Runway Beam | ISMB 100~600 (or) Plate (Width may vary) |
| Hook | DIN 15400 |
| Rope Drum | Seamless pipe rope drum grooved as per DIN 15061 |
Description
Gear Box
- In-house precision machined Aluminium cast body for reduced weight.
- In-house hardened and Precision ground gears for smooth running and long life.
- Gears permanently immersed in synthetic oil for quiet, smooth and cool operation.
Rope Drum
- Designed for durability and life long.
- Constructed from a high quality seamless steel.
- Manufactured according to DIN-15061.
Rope Guide
- Heavy duty rope guide ensures positive rope scrolling.
- GGG 40 spheroidal cast iron material used to provide low wear and keeps the rope securely in the groove on the drum.
- Special guide spring is fitted between the wire rope and the guide to maintain the correct tightness of the rope on the drum.
Rope
- High strength Wire Rope provides high resistance to fatigue and wear.
- Compact strand structure and highly flexible steel core rope for long life.
- High wire rope / pulley diameter ratio increases the rope life span.
- Selected according to ISO 4308-1.
Hook Block
- Robust design for improved safety and handling.
- Rotating hook and pulley block with safety latch.
- High strength forged steel hook capable of 360 degree rotation.
- Machined sheave grooves for long rope life.
- Designed according to DIN-15400.
Rotary Limit Switch Equipment
- Automatic cut-off of the lifting and lowering motions in upper and lower limit positions.
- Cut-off position can be adjusted to suit the application.
- Provides Upper/Lower motion limit switch as standard option.
End Tie Assembly
- Precise and accurate closed loop overload protection system(Via) VFD as an standard feature
- Rope tension load cell are used as optional accessories to measure load force and provide overload protection.
Variable Frequency Drive
- Variable frequency drives being optimized with the hoist application to have a smother and safer operation of the cranes with flexibility of variable speeds match the application.
Cross Travel Machinery
- Travel machinery is specially designed for hoist application.
- Easy to remove without removing wheels.
- Case hardened and Precision ground gears for smooth running and long life.
- Gears permanently immersed in oil/grease for quiet, smooth and cool operation.
- Standard travelling speeds of 20 m/min (single speed) and 20/5 m/min {double speed) at 50Hz. Other travelling speeds can be also fitted upon request.
Hoisting & Travel Motor
- Heavy duty motor with an incorporated brake and fan cooled.
- The brake disc lining material is asbestos free with high friction coefficient and long lasting.
- Provided with IP 54 enclosure rating and F insulation class.
- On request we can provided with IP55 or IP 56 enclosure rating with H Class insulation.
- Thermistors fitted on windings of the motor for protection of windings in high temperature.
Wheel
- Single flanged wheels for monorail hoist and double flange for crab hoist.
- The wheels are totally machined, and made of spheroidal cast material SG-700/2.
- Ball / Spherical Roller / Taper Roller bearings are used for high life.
- Modular design to suit different mounting positions.
- Easy removal and maintenance.
